Fluidyn MP EMG
Electromagnetics Simulation Module
Fluidyn-MP–EMG is dedicated to the simulation of electromagnetic phenomena and their interaction with fluid flow, heat transfer, and structural mechanics. The module solves Maxwell’s equations using specialized numerical formulations adapted to low-frequency, high-frequency, and magnetohydrodynamic applications.
The EMG module combines several electromagnetic solvers that can operate independently or be fully coupled with other fluidyn-MP modules to perform integrated multiphysics simulations. This enables the analysis of complex interactions between electromagnetic fields, fluid motion, thermal effects, and structural response within a unified simulation environment.
Specialized electromagnetic solvers:
Fluidyn-MP EMG-MHD : Magneto-hydrodynamics

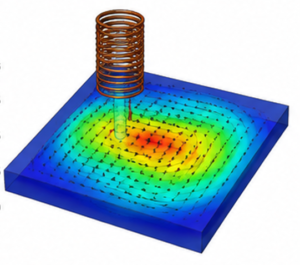

Fluidyn-MP EMG-MHD is dedicated to the simulation of electrically conducting fluids interacting with magnetic fields. The solver couples fluid dynamics and electromagnetics to model magnetohydrodynamic phenomena in industrial and scientific applications involving liquid metals, conductive fluids, and electromagnetic devices.
Key Features:
- Magnetic induction and electric potential formulations
- Robust numerical schemes for very high Hartmann number flows
- Simultaneous computation of electromagnetic fields in fluid and solid regions
- Joule heating effects and fringing magnetic field modelling
- Coupling with CFD, heat transfer, and structural analysis modules
Applications:
- Magnetohydrodynamic flows
- Continuous casting processes
- Electromagnetic pumps
- Liquid metal cooling systems
Fluidyn-MP EMG-ELFE : Electromagnetic Fields
Fluidyn–MP EMG-ELFE is dedicated to the simulation of static and low-frequency electromagnetic fields in electrical systems and components. The solver computes electromagnetic quantities and associated mechanical effects for the design and analysis of electrical equipment.
Key Features
- Magnetic vector potential formulation

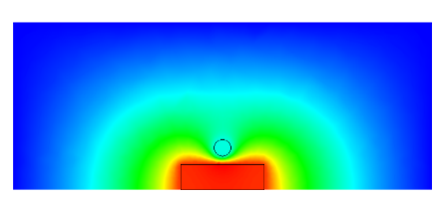

- Computation of magnetic flux density, induced EMF, electric field intensity, and current distribution
- Electromagnetic force and torque calculations
- Static and low-frequency electromagnetic analysis
- Coupling with thermal and structural solvers
Applications :

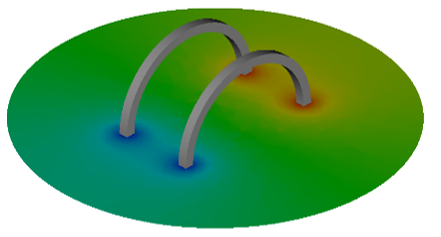

- Electric motors and generators
- Coils, inductors, and transformers
- Sensors and actuators
- Permanent magnets
- Capacitors and resistors
- Printed Circuit Board (PCB) electrical and thermal analysis
Fluidyn-MP EMG-FVTD : Finite Volume Time Domain
Fluidyn–MP EMG-FVTD is a high-frequency electromagnetic solver based on the Finite Volume Time Domain method. It solves Maxwell’s equations in the time domain to analyse electromagnetic wave propagation and scattering around complex three-dimensional objects.
Key Features
- High-order FVTD solver using third-order accurate numerical schemes
- Unstructured mesh support for complex geometries
- Harmonic and Gaussian pulse excitation
- PEC, RBC, and PML boundary conditions
- Time-domain electromagnetic field computation
- VV and HH polarization simulations
Applications

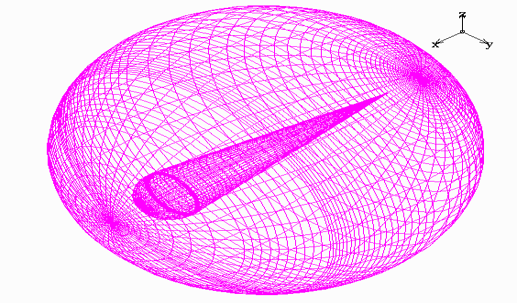

- Radar Cross Section (RCS) prediction
- Aircraft, ship, drone, and vehicle electromagnetic signature analysis
- Electromagnetic scattering studies
- Antenna and wave propagation analysis
- High-frequency electromagnetic compatibility investigations
